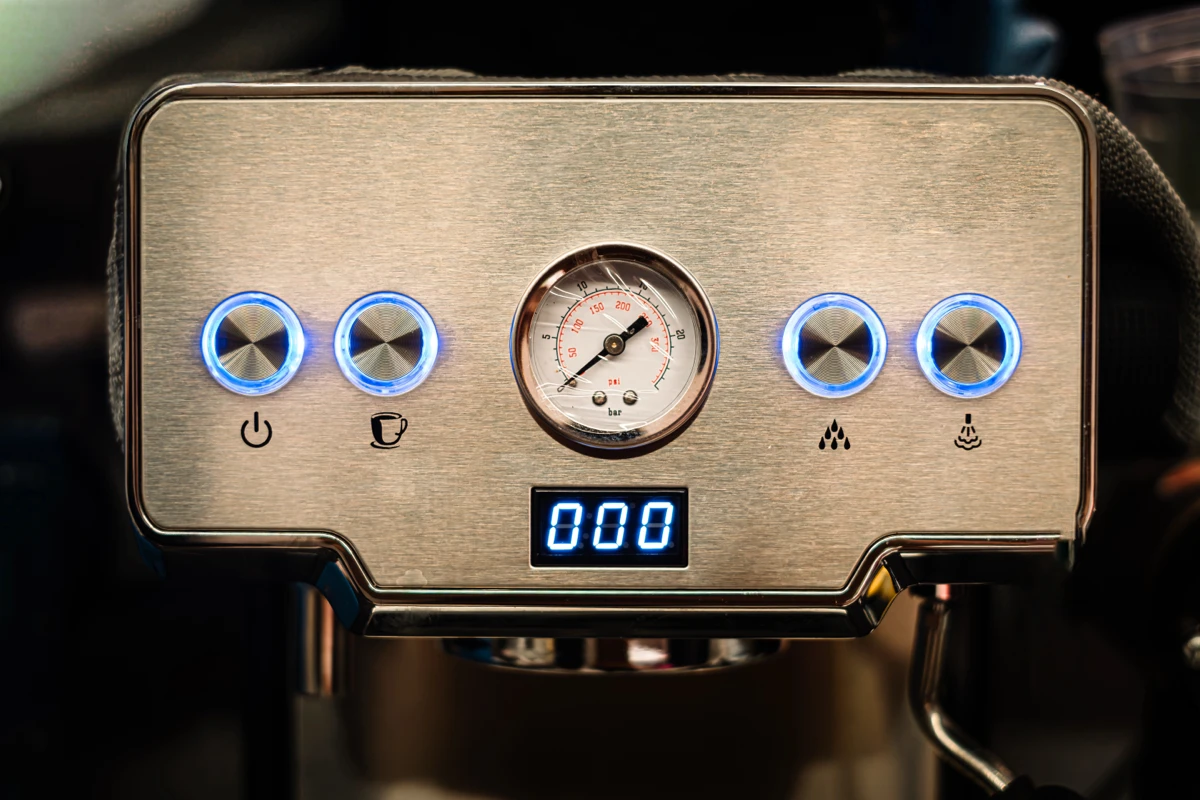

Close-up of a coffee machine control panel with four illuminated buttons, a pressure gauge in the center, and a digital display showing "000".

Espresso Technique

Espresso Machine Water Pressure Explained: Complete Guide

by Editor

Espresso Machine Water Pressure Explained: Complete Guide

If you have ever shopped for an espresso machine, you have seen the numbers plastered across the box: 15 bar, 20 bar, even higher. These figures are everywhere in marketing materials. But what do they actually mean? More importantly, do higher numbers equal better espresso?

The short answer is no. Understanding why requires a closer look at how water pressure works inside an espresso machine, what happens at the grouphead, and how the coffee itself responds to pressure during extraction. This guide breaks it all down in plain language, with practical advice you can apply right away.

Understanding Espresso Machine Water Pressure Basics

Water pressure is the force that drives hot water through a compacted bed of ground coffee. In espresso, that pressure is measured in bars. One bar is roughly equal to the atmospheric pressure at sea level. So when a machine operates at 9 bar, it pushes water through your coffee at 9 times the baseline pressure.

There are two types of pressure worth knowing: pump pressure and brew pressure. Pump pressure is the maximum pressure the machine's pump can generate. Brew pressure, also called grouphead pressure, is the actual pressure the water reaches when it contacts your coffee puck. These two numbers are not the same, and the difference is where most of the confusion begins.

Brew pressure is what matters for extraction. It determines how long water stays in contact with the coffee, how evenly it flows through the group head, and how much flavor it pulls out. Pressure that is too low produces weak, watery espresso. Pressure that is too high leads to over-extraction, channeling, and bitter flavor.

Pressure also plays a direct role in crema, as the right bar of pressure helps create that rich layer on top of your espresso. The combination of heat and pressure forces carbon dioxide out of the coffee and into the liquid, producing the golden-brown foam that sits atop a well-pulled shot.A horizontal cross-section diagram showing the water flow path through an espresso machine. From left to right: water reservoir feeds into the pump, which generates 15 to 20 bar. The flow passes through the OPV, which clips pressure to 9 bar and releases excess pressure downward. The regulated water then moves through the boiler where it is heated, into the grouphead, and down into the portafilter. A dashed vertical line separates the pump pressure zone covering the pump and OPV from the brew pressure zone covering the boiler, grouphead, and portafilter. Summary labels at the bottom reinforce the distinction.

What is the Ideal Water Pressure for Espresso Machines?

Nine bar is the widely accepted standard for espresso extraction. This figure has been refined over decades of research and practical experimentation in both commercial and home settings.

According to the Specialty Coffee Association (SCA), espresso is defined as a beverage made by forcing clean water at 9 to 10 atmospheres of pressure through a bed of finely ground coffee, with a brew time of 20 to 30 seconds. Most professional baristas work within a range of 8 to 10 bars. Source: Defining the Ever-Changing Espresso, SCA 25 Magazine

Why 9 bar specifically? At this pressure level, water extracts the right balance of soluble compounds from the coffee. Sugars, acids, oils, and aromatic compounds all dissolve at different rates. Nine bar provides enough force to extract all of them within the standard brew window, without pushing the extraction so hard that bitter compounds dominate.

Below 8 bar, water moves too slowly through the puck. The result is under-extraction: a thin, sour shot lacking body and sweetness. Above 10 bar, water is forced through too aggressively. This can cause channeling, where water carves a path through the coffee rather than saturating it evenly, affecting the quality of the espresso shot. The resulting shot often tastes harsh and bitter.

Pressure requirements can shift slightly depending on the espresso style. A traditional Italian ristretto uses a shorter extraction time and may benefit from slightly lower pressure. A longer lungo may work better toward the higher end of the range.

Commercial espresso machines are engineered to maintain consistent pressure at the right level throughout every shot. Home machines vary considerably in how well they regulate brew pressure, which is one of the key differences between a professional setup and a consumer appliance.A horizontal bar chart showing espresso extraction quality across a pressure range of 7 to 11 bar. The bar is divided into four color-coded zones: blue for under-extraction at 7 to 8 bar, green for ideal extraction at 8 to 9.5 bar, amber for a transitional zone at 9.5 to 10 bar, and red for over-extraction at 10 to 11 bar. Three description cards below the bar summarize the flavor and shot characteristics of each zone.

15 Bar vs 20 Bar Espresso Machines: What You Need to Know

Walk into any appliance store, and you will find espresso machines marketed as 15-bar or 20-bar. These numbers sound impressive. They are also misleading. Here is what is actually happening.

Most consumer espresso machines use a vibratory pump capable of generating high peak pressures. Fifteen bar or 20 bar refers to the maximum pressure the pump can produce, not the pressure actually delivered to your coffee. Think of it like a car's top speed: the fact that a vehicle can hit 150 mph does not mean it drives at that speed on city streets.

The device that regulates brew pressure is called an over-pressure valve, or OPV. It is a spring-loaded valve that opens when pressure exceeds a set limit, redirecting excess pressure away from the grouphead. Most OPVs in consumer machines are factory-set to 9-12 bar. The pump might generate 15 or 20 bar, but the OPV clips that down to the actual brew pressure.

So is a 20-bar machine better than a 15-bar machine? Not necessarily. What matters is the quality and calibration of the OPV, the pump's consistency, and how well the machine maintains stable pressure throughout the shot. A well-engineered 15-bar machine with a properly set OPV will outperform a 20-bar machine with a poorly calibrated one every time.

Pressure profiling is a more advanced concept that goes beyond static pressure. Some higher-end machines can vary pressure during the shot, starting low during pre-infusion, building to full pressure, then tapering off. This technique can improve extraction quality and highlight different flavor notes in the coffee. Most consumer machines operate at a fixed pressure, but the technology is becoming more accessible.A flowchart diagram illustrating the difference between pump pressure and brew pressure in an espresso machine. A vibratory pump generates 15 to 20 bar of pressure, which flows into an over-pressure valve labeled OPV that regulates it down to 9 bar. Excess pressure is released safely downward. The regulated 9 bar then travels to the coffee puck. A dashed vertical line separates the pump pressure zone on the left from the brew pressure zone on the right. Two summary cards at the bottom label the distinction: pump pressure is what manufacturers advertise, brew pressure is what counts.

Essential Espresso Brewing Ratios and Rules

Pressure is just one variable in the espresso equation, but achieving the right bar of pressure is crucial for a perfect espresso shot. Brew ratio is another, and the two are closely connected.

The 2:1 Rule

The 2:1 brew ratio is the standard starting point for espresso. For every gram of dry coffee you put into the portafilter, you aim to produce two grams of liquid espresso in the cup. Dose 18 grams of ground coffee and you target 36 grams of liquid output.

This ratio produces a concentrated, balanced shot with good body and clarity. To calculate your ratio, weigh your dry dose before brewing and your liquid output after brewing. Divide the output weight by the dose weight. A result of 2.0 means you hit the 2:1 ratio exactly.

The 80/20 Rule

The 80/20 rule in coffee is the idea that roughly 80 percent of your espresso's flavor comes from 20 percent of its soluble compounds. It is not a precise scientific law but a practical reminder that a small number of variables, primarily grind size, dose, brew ratio, and pressure, account for the majority of your shot's quality.

Getting those core variables right consistently matters more than obsessing over minor adjustments to everything else.

How Pressure and Ratio Interact

Pressure and brew ratio are not independent. Higher brew pressure generally speeds up extraction, so you may need to adjust your grind to a finer size or your dose slightly to maintain the same ratio within the same time window. Lower pressure slows things down, often requiring a coarser grind.

Roast level also plays a role. Lighter roasts are denser and harder to extract. They often benefit from slightly lower pressure and a finer grind to allow water enough contact time to extract the best flavors when making espresso. Darker roasts extract more easily and may work better at standard pressure with a slightly coarser grind.A three-row reference table showing standard espresso brew ratios at common dose weights. Columns show dose weight in grams, target liquid output in grams, brew ratio, and best use case by roast level. A 16 gram dose targets 32 grams of output, suited to lighter roasts. An 18 gram dose targets 36 grams, suited to most roasts. A 20 gram dose targets 40 grams, suited to darker roasts. All three achieve a 2 to 1 brew ratio.

How to Adjust and Optimize Espresso Pump Pressure

If your machine allows it, adjusting the OPV is the most direct way to change your brew pressure. Not all home machines make this easy, but many popular models do allow adjustment with basic tools. Here are some general instructions. You'll find a great how-to article for the Breville Barista Express at Craft Coffee Spot

What You Will Need

  • A portafilter pressure gauge (also called a blind filter gauge or puck pressure gauge)
  • A screwdriver or hex key, depending on your machine model
  • A timer and a scale for testing after adjustment

Step-by-Step Pressure Adjustment

  1. Fill the portafilter with a blind basket (no holes) and attach the pressure gauge.
  2. Run the machine and observe the pressure reading at steady state. This is your current brew pressure.
  3. Locate the OPV on your machine. On many Breville machines, it is accessible by removing the water tank. On DeLonghi machines, it is often inside the housing.
  4. Turn the OPV adjustment screw clockwise to increase pressure, counterclockwise to decrease it, ensuring optimal bar of pressure for your espresso. Make small adjustments, a quarter turn at a time.
  5. Run the machine again with the gauge in place and check the new reading. Repeat until you reach your target (9 bars is the standard starting point).
  6. Remove the blind basket, load your coffee, and pull a test shot. Time the extraction and taste the result.

Important: Always consult your machine's manual before attempting internal adjustments. Working inside a pressurized appliance carries risk. If you are not comfortable with this process, a local espresso machine technician can perform the adjustment for you.

Vibratory pumps, found in most consumer machines, are fixed-speed motors that generate pressure through rapid oscillation. Rotary pumps, common in commercial machines, spin continuously and provide more consistent pressure output. Adjusting pressure on a rotary pump machine is generally more straightforward and more precise.

Troubleshooting Espresso Pressure Problems

When something goes wrong with your espresso, pressure is often a contributing factor. Here is how to diagnose the most common issues.

Low Pressure: Symptoms and Causes

  • Shot runs too fast and tastes thin or sour
  • Little or no crema on the surface
  • The pressure gauge reads below 7 bar during extraction

Low pressure is often caused by a worn or weakened pump, a blocked grouphead, or an OPV set too low. Descaling your machine regularly prevents mineral buildup from restricting water flow and reducing effective pressure. If the pump sounds labored or the pressure drops mid-shot, the pump may need servicing.

High Pressure: Symptoms and Causes

  • Shot runs slowly and tastes bitter or harsh
  • Channeling visible in the puck after extraction
  • The pressure gauge reads above 10 bar during extraction

High pressure forces water through the coffee too aggressively. This often causes channeling, where pressurized water bores through a weak spot in the puck rather than saturating it evenly. The result is inconsistent extraction and a bitter, unbalanced shot.

Grind Size vs. Pressure Problems

One of the most common diagnostic mistakes is blaming pressure when the real culprit is grind size. A grind that is too fine can mimic the symptoms of high pressure. A grind that is too coarse can mimic low pressure. Before adjusting your OPV, rule out grind issues first by dialing in your grind and checking your shot time.

Maintenance and Pressure Consistency

Descaling removes calcium and magnesium deposits that build up inside the boiler, pipes, and grouphead over time. These deposits narrow the internal pathways, reducing water flow and affecting pressure consistency. Follow your machine's recommended descaling schedule, typically every 1 to 3 months, depending on water hardness and usage frequency.A diagnostic flowchart for espresso shot problems. The top row branches from a central starting question into three outcomes: shot too fast under 20 seconds, shot dialed in at 25 to 30 seconds, and shot too slow over 35 seconds. The fast and slow branches each split further into grind and pressure fix paths. A second row of three cards below covers common taste and visual symptoms: channeling in the puck, sour or watery flavor indicating under-extraction, and bitter or harsh flavor indicating over-extraction, each with a brief fix recommendatio

Advanced Pressure Concepts and Pressure Profiling

Once you have dialed in your standard 9-bar extraction, pressure profiling is the next frontier.

Pressure profiling means varying the pressure during a single shot rather than holding it constant. A common profile starts with a low-pressure pre-infusion phase, typically 2 to 4 bar, that gently wets the puck before full pressure is applied. This reduces channeling and produces a more even extraction.

Some profiles build pressure gradually to a peak and then taper it off toward the end of the shot. This can highlight sweetness and reduce bitterness in certain coffees, particularly lighter roasts with high acidity.

Machines with pressure profiling capabilities include the La Marzocco Linea Mini, the Decent Espresso DE1, and select models from Breville's Barista Touch line. Flow control paddles can be added to many E61 group machines as a manual way to experiment with pressure profiling without investing in a dedicated machine.

The technology is evolving quickly. Flow control and pressure profiling, once reserved for high-end commercial equipment, are appearing in more accessible home machines every year.A line graph showing an espresso pressure profile over a 30-second shot. The green curve rises gradually from 0 bar during a pre-infusion phase from 0 to 8 seconds, climbs to a peak of 9 bar and holds through the main extraction phase from 8 to 22 seconds, then declines to approximately 6 bar during a tapering tail from 22 to 30 seconds. A dashed gray reference line marks the 9 bar target. Three phase cards below the chart describe what happens during each stage of the shot.

Frequently Asked Questions

What is the best pressure for an espresso machine? Nine bar is the widely accepted standard for espresso extraction. The SCA references a range of 9 to 10 atmospheres as the target for brewing espresso, and most professional baristas work within 8 to 10 bar. This pressure range extracts the right balance of flavor compounds within the standard brew window. Source: Defining the Ever-Changing Espresso, SCA 25 Magazine

Why is 9 bar pressure considered ideal for espresso? At 9 bar, water has enough force to extract sugars, acids, oils, and aromatic compounds from the coffee in the right proportions and within the right time frame. Lower pressure under-extracts, producing thin and sour shots. Higher pressure over-extracts, leading to bitterness and channeling. Nine bar hits the sweet spot for most coffees and roast levels.

Is 15 bar or 20 bar better for espresso machines? Neither is inherently better, and both numbers refer to pump pressure rather than actual brew pressure. An OPV regulates the pressure that reaches your coffee, typically between 9 and 12 bar regardless of what the pump generates. A well-engineered 15 bar machine with a quality OPV will produce better espresso than a poorly calibrated 20 bar machine.

What is the 2:1 rule for espresso? The 2:1 brew ratio means producing two grams of liquid espresso for every one gram of dry coffee you dose. Use 18 grams of ground coffee and you aim for 36 grams of espresso in the cup. This ratio produces a concentrated, balanced shot and is the standard starting point for most espresso recipes.

How do I know if my espresso machine pressure is too low? Common signs include shots that run too fast (under 20 seconds), a thin watery texture, sour or underdeveloped flavor, and little or no crema. A portafilter pressure gauge can confirm whether your brew pressure is falling below 8 bar. Descaling your machine and checking for pump wear are the first steps to diagnose low pressure.

Can I adjust the pressure on my home espresso machine? Many home machines allow OPV adjustment using basic tools. The process involves attaching a pressure gauge to the portafilter, running the machine to read current pressure, and turning an adjustment screw to increase or decrease it. Always consult your machine's manual first, and if you are not comfortable with internal adjustments, a local technician can help.

What does a pressure gauge on an espresso machine tell you? A pressure gauge measures the actual water pressure at the grouphead or portafilter during extraction. It tells you whether your machine is operating within the ideal range of 8 to 10 bar. Some machines have built-in gauges on the front panel; others require an aftermarket portafilter gauge. It is one of the most useful diagnostic tools for dialing in espresso.

Does higher bar pressure make better espresso? No. Higher pump pressure ratings do not translate to better espresso. Brew pressure is regulated by the OPV and should sit between 8 and 10 bar regardless of what the pump generates. Marketing claims about 15 or 20 bar refer to pump capacity, not brew performance. Consistent, stable pressure at the correct level matters far more than a high number on the box.
